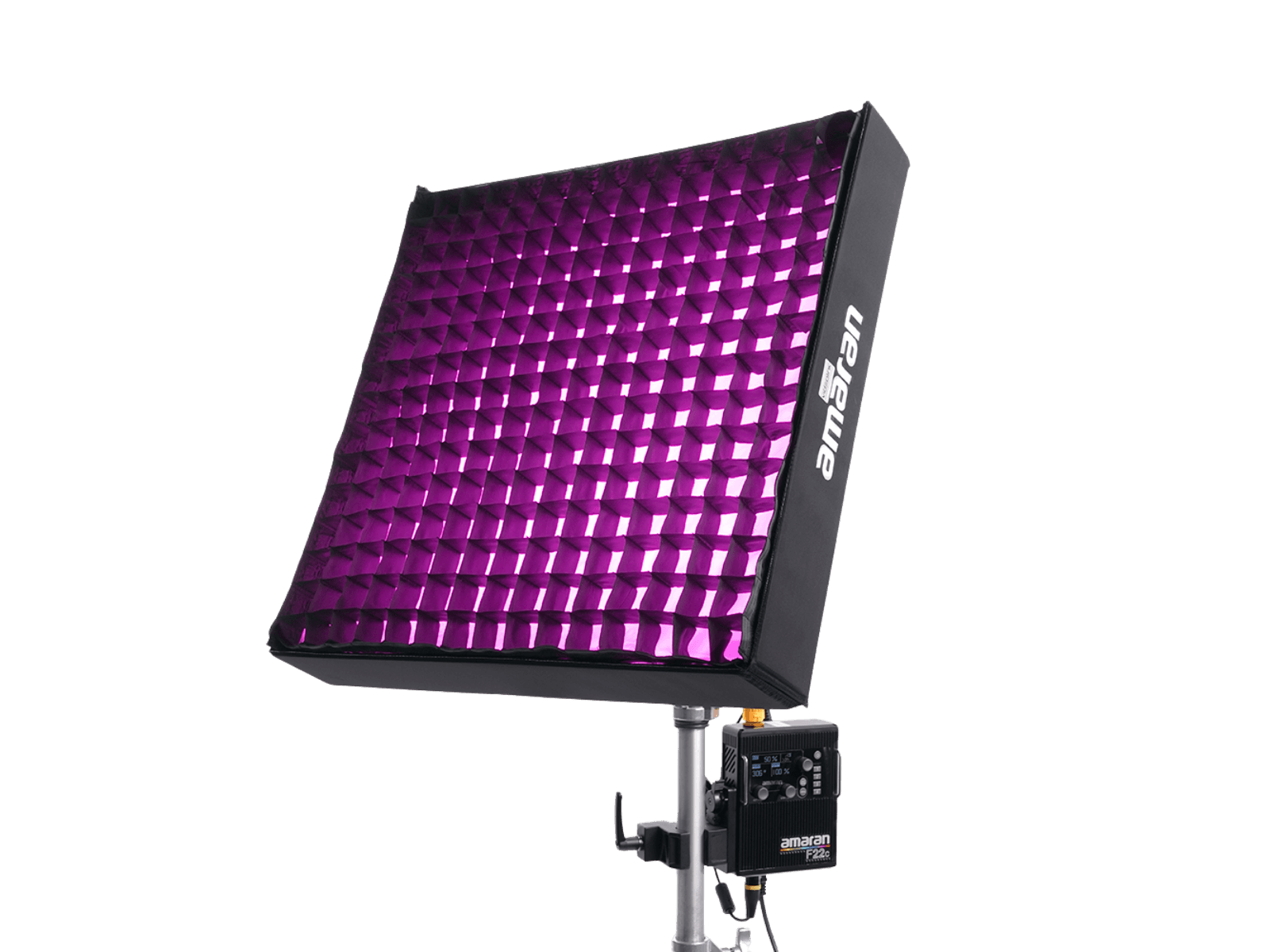

Amaran F22C
Flexible full-colour LED mat designed for portable soft-light setups.
€40/day
Availability checked in request flow
Soft light
Full color
Total flexibility
Included in this rental
- 11x Amaran F22C RGBWW 2x2 Flexible Mat
- 21x F22C Control Box
- 31x Head Cable Extension 3m
- 41x F22 Support Bracket
- 51x Right-Angle Baby Pin Adapter
- 61x Straight Baby Pin Adapter
- 71x Tilting Stand Mount
- 81x Softbox Frame
- 91x Diffusion Cloth - 1/2 Grid
- 101x Diffusion Cloth - 2.5 Stop
- 111x Light Control Grid
- 121x AC Power Supply
- 131x AC Power Cable
- 141x Carrying Bag / Case
Kit contents may vary slightly. Contact us for full details.
Technical specifications
- Manufacturer
- amaran / Aputure
- Model
- F22c
- Equipment Type
- Flexible RGBWW LED Light Mat
- Light Source
- RGBWW (Red, Green, Blue, Warm White, Cool White)
- Maximum Light Output
- 200 W
- Maximum Power Consumption
- 240 W
- Panel Dimensions
- 2×2 ft (approximately 60×60 cm)
- Color Temperature Range
- 2,500–7,500 K
- Color Control
- HSI 360°, Green-Magenta Adjustment
- Dimming Range
- 0–100%
- CRI
- ≥95
- TLCI
- ≥97
- CQS
- ≥96
- TM-30 Rf
- 94 (average)
- TM-30 Rg
- 102 (average)
- SSI (Tungsten)
- ≥83
- SSI (D56)
- ≥74
- Illuminance
- 6,420+ lux at 1 m (5600 K)
- Lighting Effects
- 15
- Color Gel Presets
- 46
- Beam Angle with Grid
- 45°
- Power Supply Output
- 48 V DC
- Maximum Operating Current
- 5 A
- Battery Compatibility
- V-Mount or Gold-Mount, depending on controller version
- Battery Input
- 12–28.8 V DC
- Full Output Battery Operation
- Compatible 26 V / 28.8 V systems
- Reduced Output Battery Operation
- Compatible 14.4 V / 16.8 V systems
- Control Methods
- Onboard / Sidus Link / DMX
- Wireless Connectivity
- Bluetooth 5.0 / Sidus Mesh
- Wireless Control Range
- Up to approximately 80 m in suitable conditions
- Firmware Updates
- Sidus Link OTA
- Controller Display
- OLED
- Mounting
- X-Bracket / Baby Pin
- Operating Temperature
- -10°C to 40°C
- Cooling
- Passive light-mat cooling
- Estimated LED Lifetime (L70)
- 50,000 hours
Production notes
-200W flexible RGBWW LED light source
- Large 2×2 ft illuminated surface
- Adjustable color temperature from 2,500K to 7,500K
- Full 360° HSI color control
- Green-magenta color correction
- High color accuracy with CRI ≥95 and TLCI ≥97
- Stepless dimming from 0–100%
- 15 built-in lighting effects
- 46 color gel presets
- Sidus Link wireless control via Bluetooth
- DMX control with compatible adapter
- AC or compatible V-Mount battery operation
- Foldable construction with X-Bracket support
- Compatible softbox, diffusion and light control grid
